HP 222866-28
Bando Cross Ref: S18-002
CC Range: 150cc-300cc
Rubber: EPDM
Aramid Load: Medium
Cord: Aramid
Description
Our HP line of CVT Drive Belts was designed to offer more for your machine.

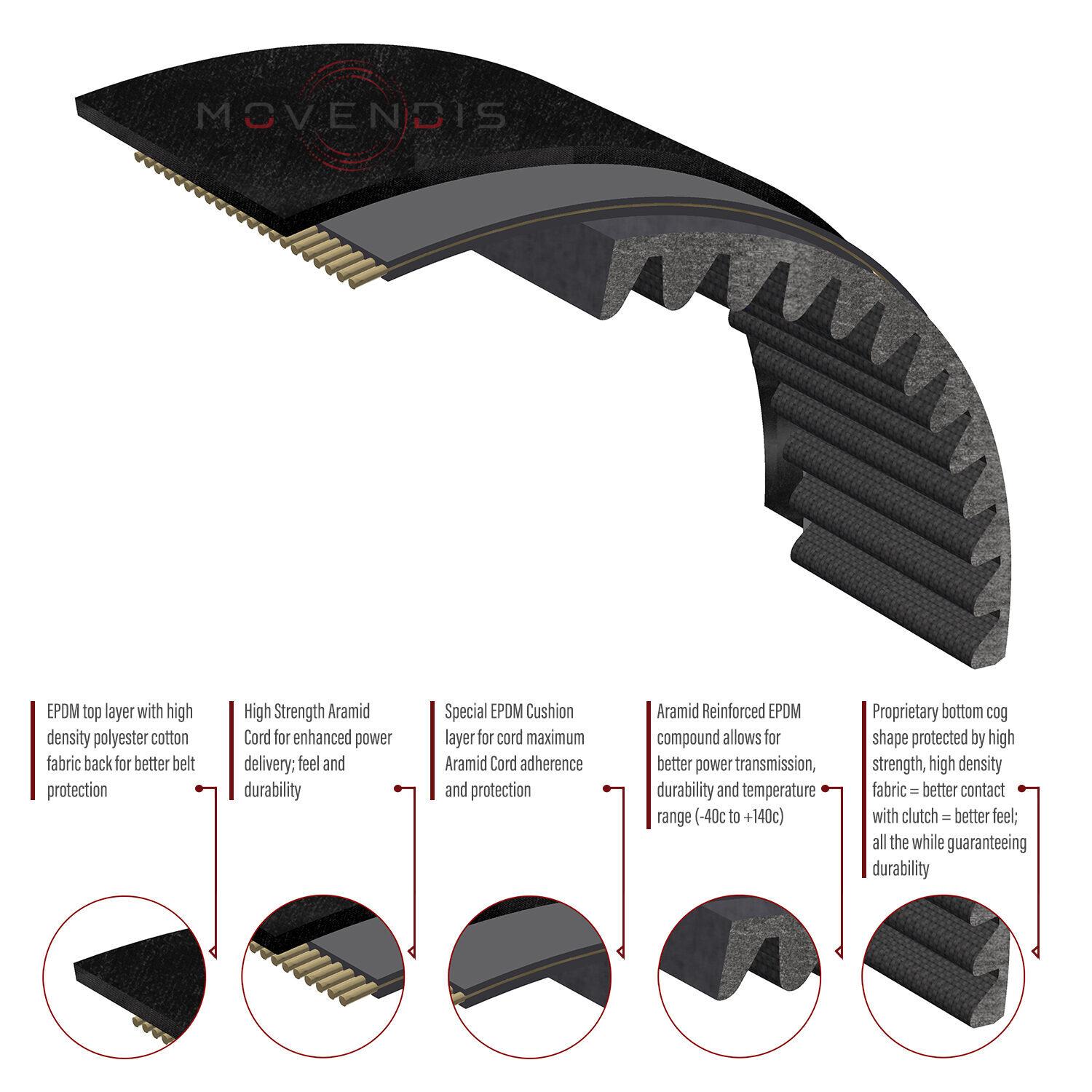

Movendis HP Belts are manufactured with high end Aramid reinforced EPDM. They also come with an Aramid cord, fixed to the belt with our propiatary EPDM “Cushion” rubber.
This technology combats failure points like delamination and torsion of the belt, offering, on average a 17% increase in strength and durability when compared to the OE belt.
Tested both in lab and in real world conditions, we made sure that our belts offer the very best feeling possible, with maximum power transmission from your engine to the wheels.
____
Top width: 0,79 in – 22,00 mm
OC: 34,09 in – 866 mm
Angle: 28°
Top cog: NO
OEM: 23100-SA1-0000
Unit Types: Scooter
| Make | Model | Year |
|---|---|---|
| Daelim | NS I 125 | 1998 |
| Daelim | NS II OTELLO 125 | 1999 - 2006 |
| Daelim | NS III OTELLO 125 | 2000 - 2005 |
| Daelim | SL HISTORY 125 | 2001 - 2016 |
| Daelim | SL S1 OTELLO FI 125 | 2007 - 2011 |
| Daelim | SQ S2 FREEWING 125 | 1997 - 2016 |
| Daelim | SQ S2 FREEWING FI 125 | 2009 - 2011 |
