HP+ 323946-30
Dayco Cross Ref: 8195-K
Bando Cross Ref: S05-023
Mitsuboshi Cross Ref: MBLSC082
CC Range: 300cc-800cc
Rubber: EPDM
Aramid Load: High
Cord: Aramid
Description
Our HP+ line of CVT Drive Belts was designed to power the transmission of high end Scooters and Maxi Scooters.

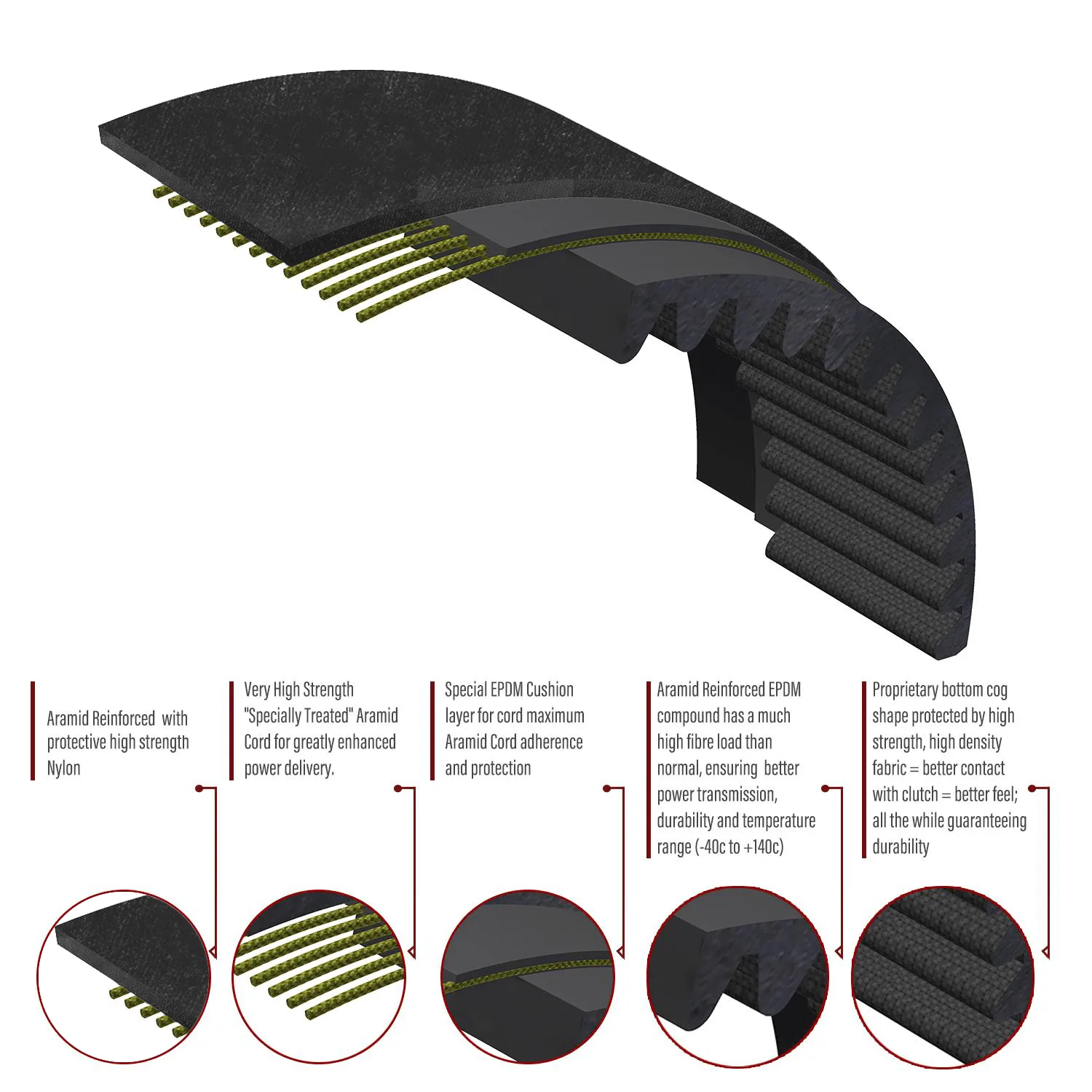

Movendis HP+ Belts are manufactured with high end Aramid reinforced EPDM. They also come with an Aramid cord, fixed to the belt with our propiatary EPDM “Cushion” rubber.
The Top Cog ensures better performances and durability.
This technology combats failure points like delamination and torsion of the belt, offering, on average a 17% increase in strength and durability when compared to the OE belt.
Tested both in lab and in real world conditions, we made sure that our belts offer the very best feeling possible, with maximum power transmission from your engine to the wheels.
____
Top width: 0,92 in – 23,3 mm
OC: 37,24 in – 946 mm
Angle: 30°
Top cog: NO
OEM: 23100-KFG-003; 754984; 496304
Unit Types: Maxi Scooter
| Make | Model | Year |
|---|---|---|
| Honda | FORESIGHT 250 | 2002 - 2005 |
| Honda | FORESIGHT FES 250 | 1997 - 2002 |
| Honda | FORZA X/EX 250 | 2005 - 2007 |
| Honda | JAZZ 250 | 2000 - 2004 |
| Honda | JAZZ NSS250 | 1997 - 2000 |
| Peugeot | SV 250 | 2001 |
| Piaggio | X9 250 | 2000 - 2001 |
